| Setting Time | 1.5-20min(adjustable) |
| Gas consumption | 0.42m³/LPG)
0.95m³/Natural gas |
| Max. Temp | 350℃ |
| Heating Area | W20″*L28″(W522mm*710mm) |

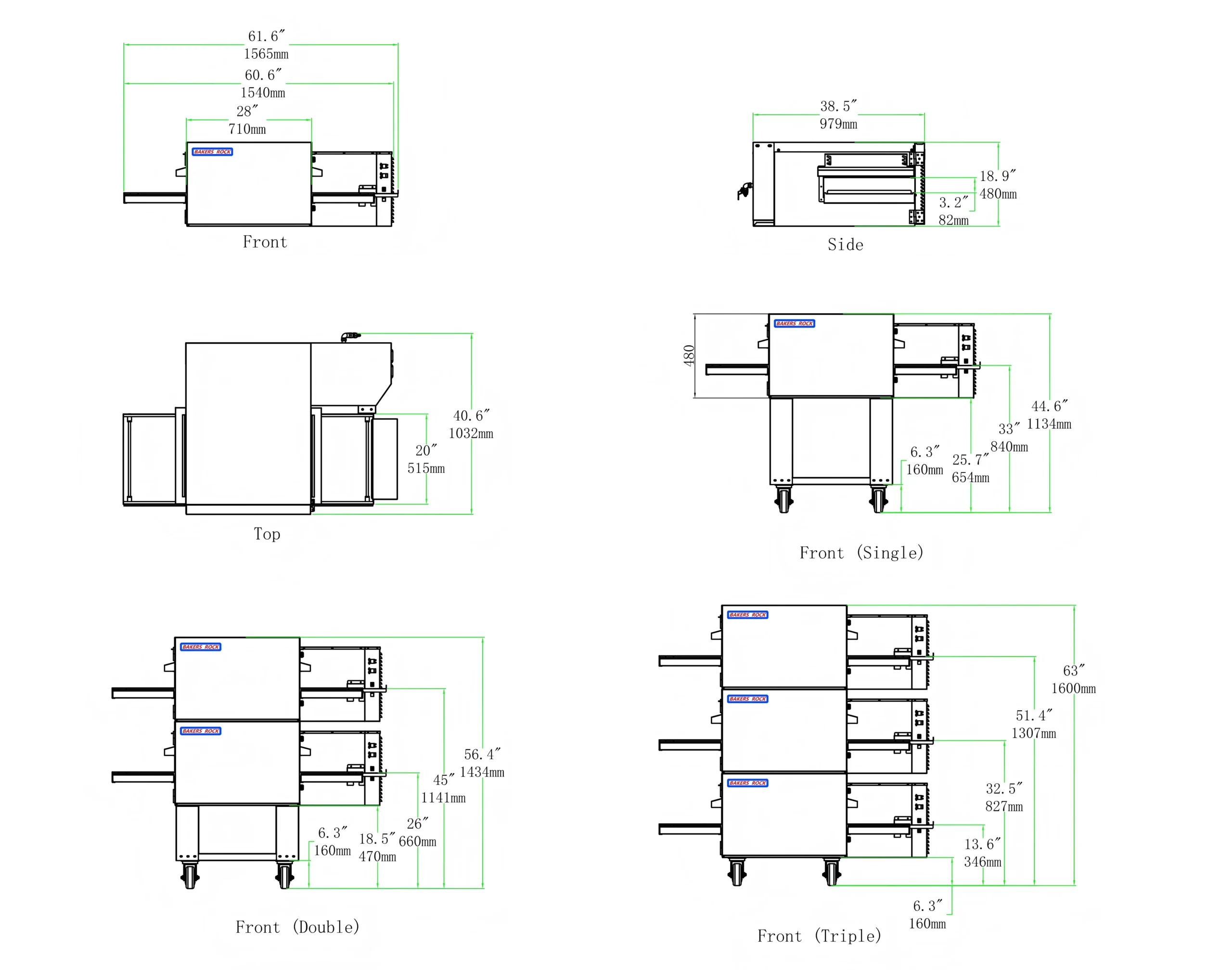

| Overall size | 1540*1064*480mm |
| Overall
(With Extension Tray) |
1675*1064*480(mm) |
| Max Inlet Height | 82mm |
| Floor Space | 1.67㎡ |
| Voltage | 220V±10% |
| Electric current | 1.4A |
| Power | 0.3KW |
| N.W. | 150kg |
| Suitable for | Small and Medium-Sized Pizza Shops, Coffee Shops, Western Restaurants |
| Applied to | Pizza, Snack, Steak, Cheese baked rice & noddles, Dessert |
| TYPE | VOLTAGE | PHASE | FREQUENCY | RATED HEAT INPUT | AMPERAGE | SUPPLY | BREAKERS | |||
| L1 | L2 | L3 | N | |||||||
| G2028 | 110V | 1 | 50/60 Hz | 300W | 2.7 | – | – | 2.7 | 2 pole 3 wire (L+ N+G) |
As per local code |
| 127V | 1 | 50/60 Hz | 2.4 | – | – | 2.4 | 2 pole 3 wire (L+ N+G) |
As per local code | ||
| 220V | 1 | 50/60 Hz | 1.4 | – | – | 1.4 | 2 pole 3 wire (L+ N+G) |
As per local code | ||

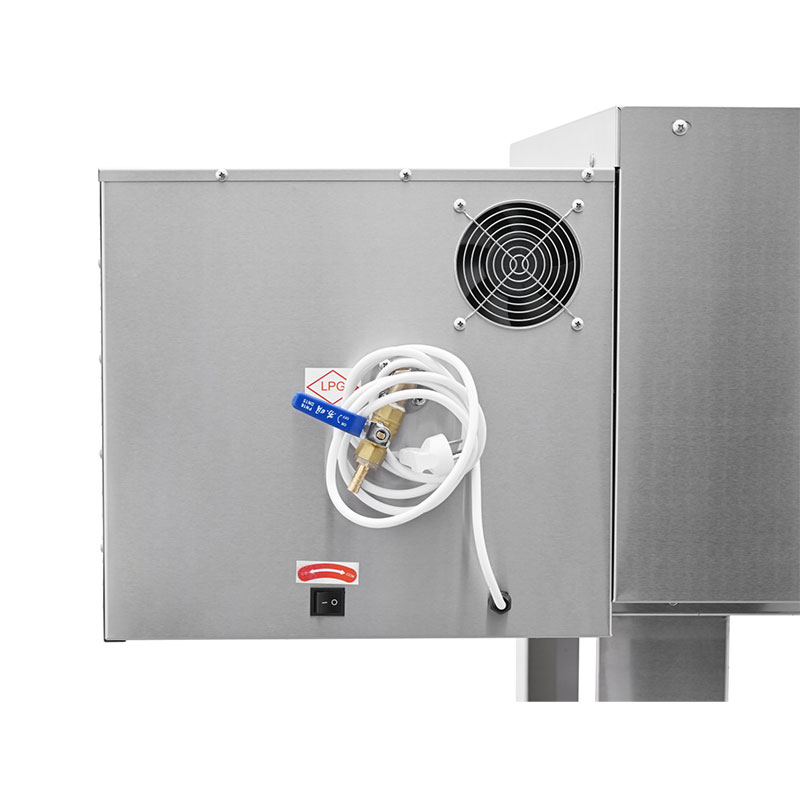

| Type | Supply (Inlet) Pressure* |
Gas Consumption | Pipe Connection |
| Natural gas | 25~35 mbar | 0.88 m³/h | 3/4” |
| Propane gas | 15~25 mbar | 0.42 m³/h | 3/4” |
