| Setting Time | 2-30min(adjustable) |
| Heating Area | W32″*L40″(W815mm*1036mm) |
| Power | 0.7KW |
| Gas consumption per hour | 0.91m³(LPG)/2.72m³(Natural gas) |
| Max Temperature | 320°C |
| Overall size | 2031*1440*649mm |
| Area of Oven | 3.2㎡ |
| Voltage | 220V |
| Electric current | 3.2A |
| Weight | 365KG |
| Suitable for | Pizzarias,burger store,Western Restaurant,Cafe |
| Application | Pizza,burger,Seafood,Chicken Wings,Vegetable,Baked Rice,Baked Noodle,Steak,Dessert,Sandwich |
| TYPE | VOLTAGE | PHASE | Hertz | RATED HEAT INPUT | AMPERAGE | SUPPLY | BREAKERS | |||
| L1 | L2 | L3 | N | |||||||
| G3240 | 110V | 1 | 50/60 Hz | 700W | 6.4 | – | – | 6.4 | 2 pole 3 wire (L+ N+G) |
As per local code |
| 127V | 1 | 50/60 Hz | 5.5 | – | – | 5.5 | 2 pole 3 wire (L+ N+G) |
As per local code | ||
| 220V | 1 | 50/60 Hz | 3.2 | – | – | 3.2 | 2 pole 3 wire (L+ N+G) |
As per local code | ||

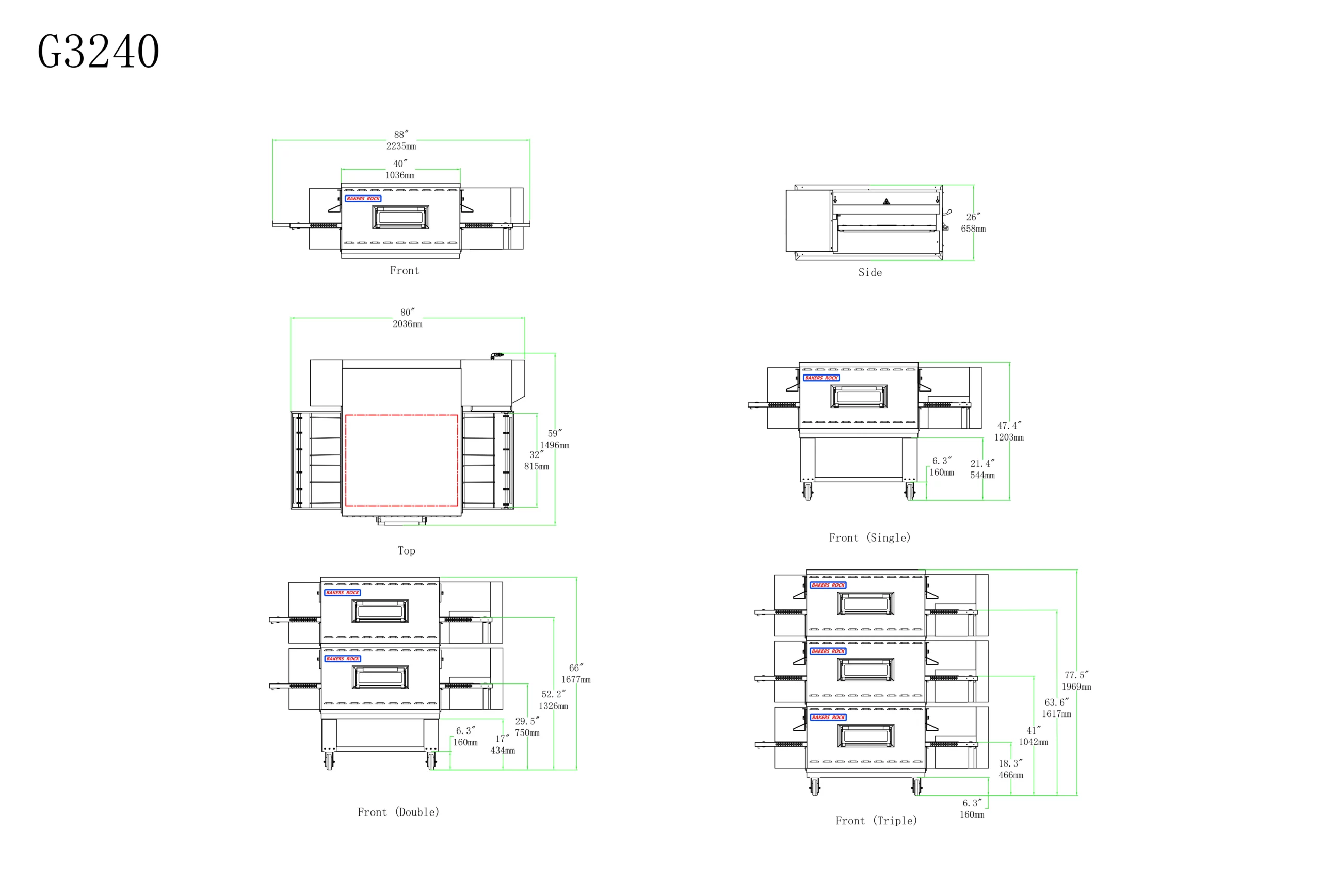

| Model | Belt Width | Belt Length | Chamber Length | Baking Area | Max.Inlet Height | Baking Time Range | Max. Temp. | Net Wt.* | Ship Info.* | Pizza Capacity * | ||
| 9” | 12” | 15” | ||||||||||
| G3240 | 32” 810mm |
73” 1855mm |
40” 1036mm |
0.85sqm 9.15sqft |
4″ 101mm |
2 ~30min | 320°C 608°F |
350kg | 530kg 3.4m3 |
280+ | 140+ | 100+ |
