| Setting Time | 1.5-15min(adjustable) |
| Power Consumption | 3.5-4.5 kw/h |
| Max Temperature | 320°C |
| Heating Areal(W*L) | 16″(410mm)*24″600mm) |

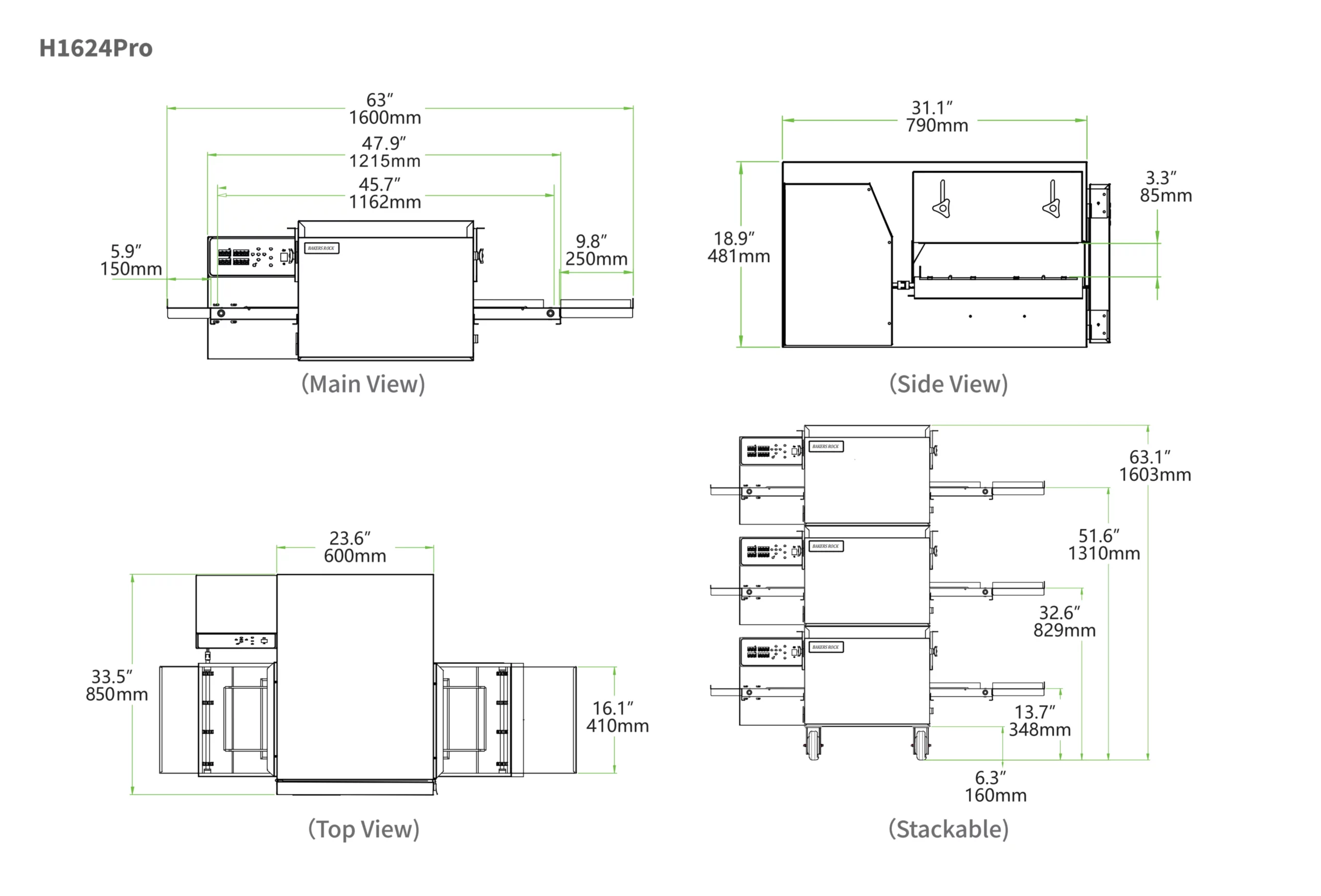

| Overall size | 1215*850*481mm |
| Overall(With Extension Tray) | 1600*850*481mm |
| Max Intel Height | 85mm |
| Floor Space | 1.36m² |
| Voltage | 380V/220V±10% |
| Electric current | 11.4A |
| Power | 6.8 kw |
| N.W. | 120kg |
| Suitable for | Small Pizzerias，Food Truck, Cafes, Buffet , Snack Bar |
| Application | Pizza, Burger, baked rice, Lasagna, Tacos, Chicken wings, Panini, Potato Wedges, Sea foods … |
| TYPE | VOLTAGE | PHASE | Hertz | RATED HEAT INPUT | AMPERAGE | SUPPLY | BREAKERS | |||
| L1 | L2 | L3 | N | |||||||
| H1624Pro | 220V | 1 | 50/60 Hz | 6.8kW | 30.0 | – | – | 30.0 | 2 pole 3 wire (L+ N+G) |
As per local code |
| 208V | 1 | 50/60 Hz | 31.7 | – | – | 31.7 | 2 pole 3 wire (L+ N+G) |
As per local code | ||
| 220V | 3 | 50/60 Hz | 17.3 | 17.3 | 17.3 | – | 3 pole 4 wire (3L+ G) |
As per local code | ||
| 208V | 3 | 50/60 Hz | 18.3 | 18.3 | 18.3 | 3 pole 4 wire (3L+ G) |
As per local code | |||
| 380V | 3 | 50/60 Hz | 9.6 | 9.6 | 9.6 | 1.8 | 4 pole 5 wire (3L+N+ G) |
As per local code | ||
